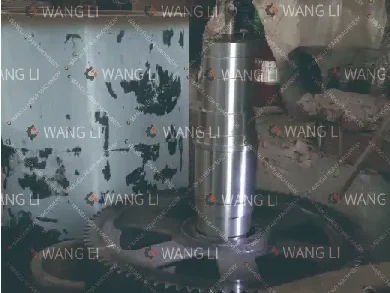

How to Attach a Gear to Shaft in Heavy-Duty Machinery
When it comes to large-scale or heavy-duty applications—think mining equipment, industrial gearboxes, or massive conveyor systems—the method you choose to attach a gear to shaft must withstand extreme torque, shock loads, and continuous operation. In these environments, standard techniques like set screws or basic press fits fall short. Instead, you need robust, precision-engineered solutions that guarantee reliability, longevity, and minimal downtime.
In this guide, we’ll dive into the best practices and advanced methods for securing gears to shafts in heavy-duty machinery, including industrial standards, cutting-edge technologies, and expert tips to optimize performance.
Why Heavy Duty Gear to Shaft Connections Demand Special Attention
Heavy machinery operates under intense conditions:
- High torque and shock loads (e.g., excavator arms, crushers)
- Extreme temperatures (e.g., steel mills, kilns)
- Vibration and misalignment risks (e.g., wind turbines, marine propulsion)
- Costly downtime if components fail
A poorly designed connection here can lead to catastrophic failures, safety hazards, and expensive repairs.
Top 4 Heavy Duty Gear to Shaft Connection Methods
1. Hydraulic Interference Fit (Hydraulic Mounting)
How it works: A high-pressure oil film expands the gear hub or compresses the shaft, allowing the gear to slide into place. Once pressure is released, the interference fit locks the gear securely.
Best for: Ultra-heavy-duty applications (e.g., wind turbines, rolling mills, large turbines).
Pros:
- Eliminates stress concentrations (no keys/splines)
- Distributes load evenly for maximum torque capacity
- Easier disassembly with hydraulic pressure
Cons:
- Requires specialized hydraulic equipment
- Higher upfront cost
Expert Tip: Combine with surface texturing on the shaft to enhance friction grip.

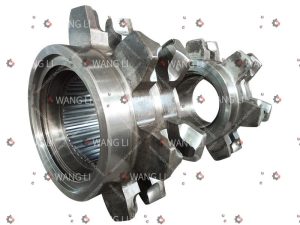

2. Involute Spline Connections
How it works: Teeth with an involute profile (curved like a spiral) on the shaft and gear hub engage to transmit torque.
Best for: Applications requiring axial movement under load (e.g., construction equipment, locomotives).
Pros:
- High torque capacity with reduced stress concentrations
- Self-centering for improved alignment
- Wear-resistant due to large contact area
Cons:
- Complex machining and alignment required
- Costlier than keyed systems
Example: Common in bulldozer transmissions and mining trucks.
3. Keyed Shafts with Reinforced Keys (e.g., Tangential Keys)
How it works: A key (often rectangular or tangential) is inserted into precisely cut keyways to lock the gear to the shaft.
Best for: High-torque, non-reversible systems (e.g., industrial pumps, compressors).
Pros:
- Proven reliability in heavy machinery
- Easy to inspect and replace
Cons:
- Stress concentration at keyway edges
- Requires precision machining
Upgrade: Use tangential keys (angled keys) for better shear resistance in large gears.
4. Tapered Locking Assemblies (e.g., Taper-Lock Bushings)
How it works: A tapered bushing is compressed between the gear and shaft using bolts, creating a tight, concentric grip.
Best for: Frequent disassembly or maintenance (e.g., crushers, mixers).
Pros:
- No keyways or splines needed
- Accommodates minor misalignment
- Reusable and easy to install/remove
Cons:
- Limited torque capacity compared to splines
- Requires precise torque on bolts
Pro Tip: Pair with hydraulic nuts for faster, safer installation in large-scale systems.
Advanced Solutions for Extreme Conditions
A. Composite Interference Fits (Hybrid Approach)
Use a combination of hydraulic interference fit and adhesive bonding for critical aerospace or marine applications. The adhesive fills micro-gaps, preventing fretting corrosion while the interference fit handles torque.
B. Shrink Fit with Thermal Expansion
Heat the gear to expand its bore or cool the shaft to contract it, then assemble. Ideal for massive gears in steel mills or turbines.
Pros:
- Exceptional torque transmission
- No mechanical features to fail
Cons:
- Requires precise temperature control
- Risk of thermal distortion
Critical Design Considerations for Heavy-Duty Systems
- Material Selection: Use hardened steel (e.g., 42CrMo4) for shafts and gears to resist wear and fatigue.
- Surface Finish: Ensure Ra ≤ 0.8 μm for interference fits to maximize friction.
- Lubrication: Apply anti-seize compounds during assembly to prevent galling in splines or keys.
- Dynamic Balancing: Critical for high-speed applications (e.g., turbines) to avoid vibration-induced failure.
